GEN 3.2  Aeronautical charts

1.   Responsible service

1.1 The Aeronautical Information Services Division of The National Civil Aviation Center SOLLC of Mongolia is responsible for producing all types of aeronautical charts for use by civil aviation. The aeronautical charts are produced in accordance with the provisions contained in Annex 4 - Aeronautical charts. Differences to these provisions are detailed in subsection GEN 1.7.

2.  Maintenance of charts

2.1 The aeronautical charts included in the AIP are kept up to date by amendments to the AIP. Corrections to aeronautical charts not contained in the AIP are promulgated by AIP Amendments and are listed under GEN 3.2.8. of this subsection. Information concerning the planning for or issuance of new maps and charts is notified by AIC.
2.2 En-route chart is published twice a year. Whenever major changes are made to the design and structure of the ATS route network, then publishing of chart will be done instantaneously. For latest and valid information refer to ENR 2, ENR 3, ENR 4 and ENR 5.
2.3 If incorrect information detected on published charts is of operational significance, it is corrected by NOTAM.

3.  Purchase arrangements

3.1 The charts listed under GEN 3.2.5 may be obtained from the:

Aeronautical Information Services Division
Buyant-Ukhaa International Airport
P.O.Box-59
Ulaanbaatar 17120
Mongolia

Tel: 976-71283121

Fax: 976-70049838

E-mail: chart@ncac.mn

URL: www.ais.mn

Note: The operational hours are MON-FRI: 00:00-09:00 UTC.

4.  Aeronautical chart series available

4.1.1 The following series of aeronautical charts are produced in accordance with Annex 4:

  1. Aerodrome chart - ICAO;

  2. Aircraft Parking/Docking Chart - ICAO;

  3. En-route Chart - ICAO;

  4. Standard Departure Chart - Instrument (SID) - ICAO;

  5. Standard Arrival Chart – instrument (STAR) – ICAO;

  6. Instrument Approach Chart – ICAO (for each runway and procedure type);

  7. Visual Approach Chart - ICAO;

  8. World Aeronautical Chart (WAC) - ICAO 1:1000000;

  9. Aeronautical Chart – ICAO 1:500000.

4.1.2 The following series of aeronautical charts are produced:

  1. Heliport chart;

  2. Visual reporting points chart;

  3. Bird concentrations in the vicinity of aerodrome;

  4. Munkh-Ulziit radar coverage in Ulaanbaatar TMA;

  5. Prohibited and Restricted areas in the vicinity of Buyant – Ukhaa aerodrome – index chart.

Note: “Aerodrome Obstacle Chart - ICAO Type A” is not published for Chinggis Khaan International Airport and Buyant-Ukhaa International Airport, Choibalsan International Airport, Khovd International Airport and Muren International Airport because no obstacles exist in the take-off flight path area.

The charts currently available are listed under GEN 3.2.5.

4.2 General description of each series

  1. Aerodrome Chart - ICAO

    This chart shall provide flight crews with information which will facilitate the ground movement of aircraft:

    1. from the aircraft stand to the runway; and

    2. from the runway to the aircraft stand.

  2. Heliport Chart

    This chart contains detailed heliport data to provide flight crew with information that will facilitate the ground movement of helicopter:

    1. along helicopter ground and air taxiways

  3. Aircraft Parking/Docking Chart - ICAO

    This supplementary chart shall provide flight crews with detailed information to facilitate the ground movement of aircraft between the taxiways and the aircraft stands and the parking/docking of aircraft.

  4. En-route Chart - ICAO

    This chart shall provide flight crews with information to facilitate navigation along ATS routes in compliance with air traffic services procedures.

  5. Standard Departure Chart - Instrument (SID) - ICAO

    This chart shall provide the flight crew with information to enable it to comply with the designated standard departure route — instrument from take-off phase to the en-route phase.

  6. Standard Arrival Chart — Instrument (STAR) - ICAO

    This chart shall provide the flight crew with information to enable it to comply with the designated standard arrival route— instrument from the en-route phase to the approach phase.

  7. Instrument Approach Chart - ICAO

    This chart shall provide flight crews with information which will enable them to perform an approved instrument approach procedure to the runway of intended landing including the missed approach procedure and, where applicable, associated holding patterns.

  8. Visual Approach Chart - ICAO

    This chart shall provide flight crews with information which will enable them to transit from the en-route/descent to approach phases of flight to the runway of intended landing by means of visual reference.

  9. World Aeronautical Chart (WAC) - ICAO 1:1000000

    This chart shall provide information to satisfy the requirements of visual air navigation.

  10. Aeronautical Chart – ICAO 1:500000

    This chart shall provide information to satisfy the requirements of visual air navigation for low speed, short- or medium-range operations at low and intermediate altitudes.



5.  List of aeronautical charts available

№

Title of series

Scale

Name and/or number

Unit price

Date of latest revision

1

En-route chart - ICAO

1:3000000

ENRC

MNT 56400

17 APR 2025

2

World Aeronautical Chart - ICAO

1:1000000

- 2240 UVS

MNT 28200

11 JAN 2024

- 2241 KHUVSGUL

- 2201 KHENTII

- 2202 DORNOD

- 2242 ALTAI

- 2286 KHANGAI

- 2285 SUKHBAATAR

- 2284 BUIR

- 2331 ERDENE

- 2287 GOBI

- 2288 DORNOGOBI

3

Aeronautical Chart – ICAO

1:500000

2201-A SHAAMAR

MNT 28200

06 OCT 2022

2201-C KHENTII

11 JAN 2024

2201-D DADAL

06 OCT 2022

2202-C KHUKH NUUR

06 OCT 2022

2240-A ULAANGOM

06 OCT 2022

2240-B TES

06 OCT 2022

2240-C ULGII

06 OCT 2022

2240-D KHYARGAS

06 OCT 2022

2241-A KHATGAL

06 OCT 2022

2241-B TUSHIG

06 OCT 2022

2241-C KHUVSGUL

06 OCT 2022

2241-D ERDENET

06 OCT 2022
2242-A MUNKHKHAIRKHAN06 OCT 2022

2242-B ALTAI

06 OCT 2022

2242-C BUGAT

06 OCT 2022

2242-D BIGER

06 OCT 2022

2243-B SAGSAI

06 OCT 2022

2284-A MATAD

06 OCT 2022

2284-B KHALKHGOL

06 OCT 2022

2284-C ERDENETSAGAAN

06 OCT 2022

2285-A ZUUN MOD

11 JAN 2024

2285-B SUKHBAATAR

06 OCT 2022

2285-C SHAND

06 OCT 2022

2285-D GANGA

06 OCT 2022

2286-A KHANGAI

06 OCT 2022

2286-B TUV

11 JAN 2024

2286-C BOGD

06 OCT 2022

2286-D DUNDGOBI

10 AUG 2023

2287-A GURVANTES

06 OCT 2022

2287-B GOBI

10 AUG 2023

2287-D BOR TOLGOI

06 OCT 2022

2288-A KHATANBULAG

06 OCT 2022

2288-B ZAMYN-UUD

06 OCT 2022

2331-B ATAS BOGD

06 OCT 2022

Note: Value Added Tax (VAT) is applicable.

№

Aerodrome name/locationindicator

Title of series and name of chart

Scale

Date of latest revision

1

Arvaikheer/ZMAH

Aerodrome Chart - ICAO

1:16000

REF to AIP page

2

Altai/ZMAT

Aerodrome Chart - ICAO

1:15000

Standard Departure Chart - Instrument (SID) -ICAO

- RWY 10 BH 1A, IGOMA 2A, ODOKU 2A ACFT CAT B/C

1:780000

Instrument Approach Chart - ICAO

- VOR Z RWY 28 ACFT CAT B

- VOR Y RWY 28 ACFT CAT B/C

- RNP RWY 28 (LNAV only) ACFT CAT B/C

1:390000

1:390000

1:390000

Bird concentrations in the vicinity of aerodrome

1:200000

3

Bayankhongor/ZMBH

Aerodrome Chart - ICAO

1:16000

4

Bulgan/ZMBN

Aerodrome Chart - ICAO

1:12000

5

Bulgan sum/ZMBS

Aerodrome Chart - ICAO

1:10000

6

Baruun-Urt/ZMBU

Aerodrome Chart - ICAO

1:13000

7

Choibalsan/ZMCD

Aerodrome Chart - ICAO

1:18000

Standard Departure Chart - Instrument (SID) -ICAO

- OMNIDIRECTIONAL DEPARTURE RWY 12/30 ACFT CAT A/B/C

1:220000

Instrument Approach Chart – ICAO

- NDB Z RWY 12 ACFT CAT A/B

- NDB Y RWY 12 ACFT CAT C

- NDB Z RWY 30 ACFT CAT A/B

- NDB Y RWY 30 ACFT CAT C

- NDB X RWY 30 ACFT CAT A/B, C

- RNP RWY 12 (LNAV only) ACFT CAT A/B, C

- RNP RWY 30 (LNAV only) ACFT CAT A/B, C

1:220000

1:220000

1:250000

1:250000

1:250000

1:300000

1:300000

8

Chinggis khaan/ZMCK

Aerodrome Chart - ICAO

1:14000

Aircraft Parking/Docking Chart - ICAO

1:3200

Standard Departure Chart - Instrument (SID) -ICAO

- RWY 11/29 TOROV 2A/2B

- RWY 11/29 LUBSO 2A/2B

- RWY 11/29 ISMIN 2A/2B

- RWY 11/29 MENUG 2A/2B

- RWY 11/29 TATIG 2A/2B

- RNAV(GNSS) RWY 11/29 TOROV 2C/2D

- RNAV(GNSS) RWY 11/29 LUBSO 2C/3D

- RNAV(GNSS) RWY 11/29 ISMIN 2C/2D

- RNAV(GNSS) RWY 11/29 MENUG 2C/2D

- RNAV(GNSS) RWY 11 BURKU 2D

- RNAV(GNSS) RWY 11/29 EGERO 2C/2D

1:530000

1:520000

1:520000

1:550000

1:520000

1:590000

1:520000

1:650000

1:650000

1:520000

1:650000




Standard Arrival Chart — Instrument (STAR) - ICAO

- RWY 11 LUBSO 2X, TOROV 2X, MENUG 2X, TATIG 2X

- RWY 29 LUBSO 2Z, TOROV 2Z, MENUG 2Y

- RWY 29 MENUG 2Z, TATIG 2Z

- RNAV(GNSS) RWY 11 LUBSO 2V, TOROV 2V, MENUG 2V,TATIG 2V

- RNAV(GNSS) RWY 29 TOROV 2W, MENUG 2W, EGERO 2W, TATIG 2W

1:650000

1:650000

1:650000

1:650000

1:650000

REF to AIP page

Instrument Approach Chart – ICAO

- VOR Z RWY 11 ACFT CAT A/B, C/D

- VOR Z RWY 29 ACFT CAT A/B, C/D

- VOR Y RWY 11 ACFT CAT A/B, C/D

- VOR Y RWY 29 ACFT CAT A/B, C/D

- ILS Z RWY 29 ACFT CAT A/B, C/D

- ILS Y RWY 29 ACFT CAT A/B, C/D

- ILS X RWY 29 ACFT CAT A/B, C/D

- LOC Z RWY 29 ACFT CAT A/B, C/D

- LOC Y RWY 29 ACFT CAT A/B, C/D

- LOC X RWY 29 ACFT CAT A/B, C/D

- RNP RWY 11 (LNAV only) ACFT CAT A/B, C/D

- RNP RWY 29 (LNAV only) ACFT CAT A/B, C/D

1:530000

1:440000

1:370000

1:370000

1:370000

1:370000

1:370000

1:370000

1:370000

1:370000

1:420000

1:370000

Visual reporting points chart1:700000
Bird concentrations in the vicinity of aerodrome1:125000

9

Otgontenger/ZMDN

Aerodrome Chart - ICAO

1:17500

10

Gurvansaikhan/ZMDZ

Aerodrome Chart - ICAO

1:15000

Instrument Approach Chart – ICAO

- NDB RWY 29 ACFT CAT A/B, C

1:350000

11

Khatgal/ZMHG

Aerodrome Chart - ICAO

1:13000

12

Kharkhorin/ZMHH

Aerodrome Chart - ICAO

1:10000

13

Khanbumbat/ZMKB

Aerodrome Chart - ICAO

1:12000

Instrument Approach Chart – ICAO

- NDB RWY 16 ACFT CAT A/B,C/D

- NDB RWY 34 ACFT CAT A/B,C/D

1:340000

1:340000

14

Khovd/ZMKD

Aerodrome Chart - ICAO

1:16000

Standard Departure Chart - Instrument (SID) -ICAO

- RWY 16/34 PANTI 2A/2B ACFT CAT A/B/C

- RWY 16/34 RUNIS 2A/2B ACFT CAT A/B/C

- RWY 16/34 OBGUM 2A/2B ACFT CAT A/B/C

1:500000

1:500000

1:500000

Instrument Approach Chart – ICAO

- RNP RWY 34 (LNAV only) ACFT CAT A/B/C

1:370000

15

Mandalgobi/ZMMG

Aerodrome Chart - ICAO

1:10000



16

Muren/ZMMN

Aerodrome Chart - ICAO

1:14000

REF to AIP page

Standard Departure Chart - Instrument (SID) -ICAO

- RWY 10/28 MUBUR 2A/2B ACFT CAT A/B/C

- RWY 10/28 PAGDI 2A/2B ACFT CAT A/B/C

- RWY 28 ASUBU 2B ACFT CAT A/B/C

1:450000

1:450000

1:450000

Instrument Approach Chart – ICAO

- NDB Z RWY 28 ACFT CAT A/B

- NDB Y RWY 28 ACFT CAT C

- RNP RWY 28 (LNAV only) ACFT CAT A/B/C

1:420000

1:420000

1:350000

17

Sky friends/ZMSF

Aerodrome Chart - ICAO

1:5000

18

Tosontsengel/ZMTL

Aerodrome Chart - ICAO

1:14000

Bird concentrations in the vicinity of aerodrome

1:58000

19

Tavan tolgoi/ZMTT

Aerodrome Chart - ICAO

1:13000

20

Buyant-Ukhaa/ZMUB

Aerodrome Chart - ICAO

1:12000

Aircraft Parking/Docking Chart - ICAO

1:5000

Standard Departure Chart - Instrument (SID) -ICAO

- VOR/DME RWY 32 TATIG 3E, TOROV 3E/3F, SER 2F,DUKIM 3E, LUBSO 3E

- NDB RWY 32 TATIG 3G, TOROV 4G/3H, SER 1B, DUKIM 3G, LUBSO 4G

1:520000

1:520000

Instrument Approach Chart – ICAO

- VOR/DME RWY 14 ACFT CAT A/B, C/D

- NDB RWY 14 ACFT CAT A/B, C/D

- NDB/DME RWY 14 ACFT CAT A/B, C/D

- ILS RWY 14 ACFT CAT A/B, C/D

- RNP RWY 14 (LNAV only) ACFT CAT A/B/C/D

1:280000

1:330000

1:280000

1:340000

1:370000

Visual reporting points chart1:700000

Bird concentrations in the vicinity of aerodrome

1:200000

21

Deglii tsagaan/ZMUG

Aerodrome Chart - ICAO

1:15000

Standard Departure Chart - Instrument (SID) -ICAO

- RWY 31/13 SADGO 2A/2B ACFT CAT A/B/C

- RWY 13 URBUM 2B ACFT CAT A/B/C

- RWY 31 MIBUT 2A ACFT CAT A/B/C

1:600000

1:600000

1:600000

Standard Arrival Chart — Instrument (STAR) - ICAO

- RNAV (GNSS) RWY 31 SADGO2 MIBUT2

1:570000

Instrument Approach Chart – ICAO

- NDB RWY 31 ACFT CAT A/B, C

- RNP RWY 31 (LNAV only) ACFT CAT A/B, C

1:280000

1:560000

22

Undurkhaan/ZMUH

Aerodrome Chart - ICAO

1:12000

23

Ulgii/ZMUL

Aerodrome Chart - ICAO

1:12000

Visual Approach Chart

- RNP RWY 31 (VISUAL) ACFT CAT B/C

1:370000

№

Heliport name/location indicator

Title of series and name of chart

Scale

Date of latest revision

1Bogd khan/ZMBKHeliport chart1:200

REF to AIP page

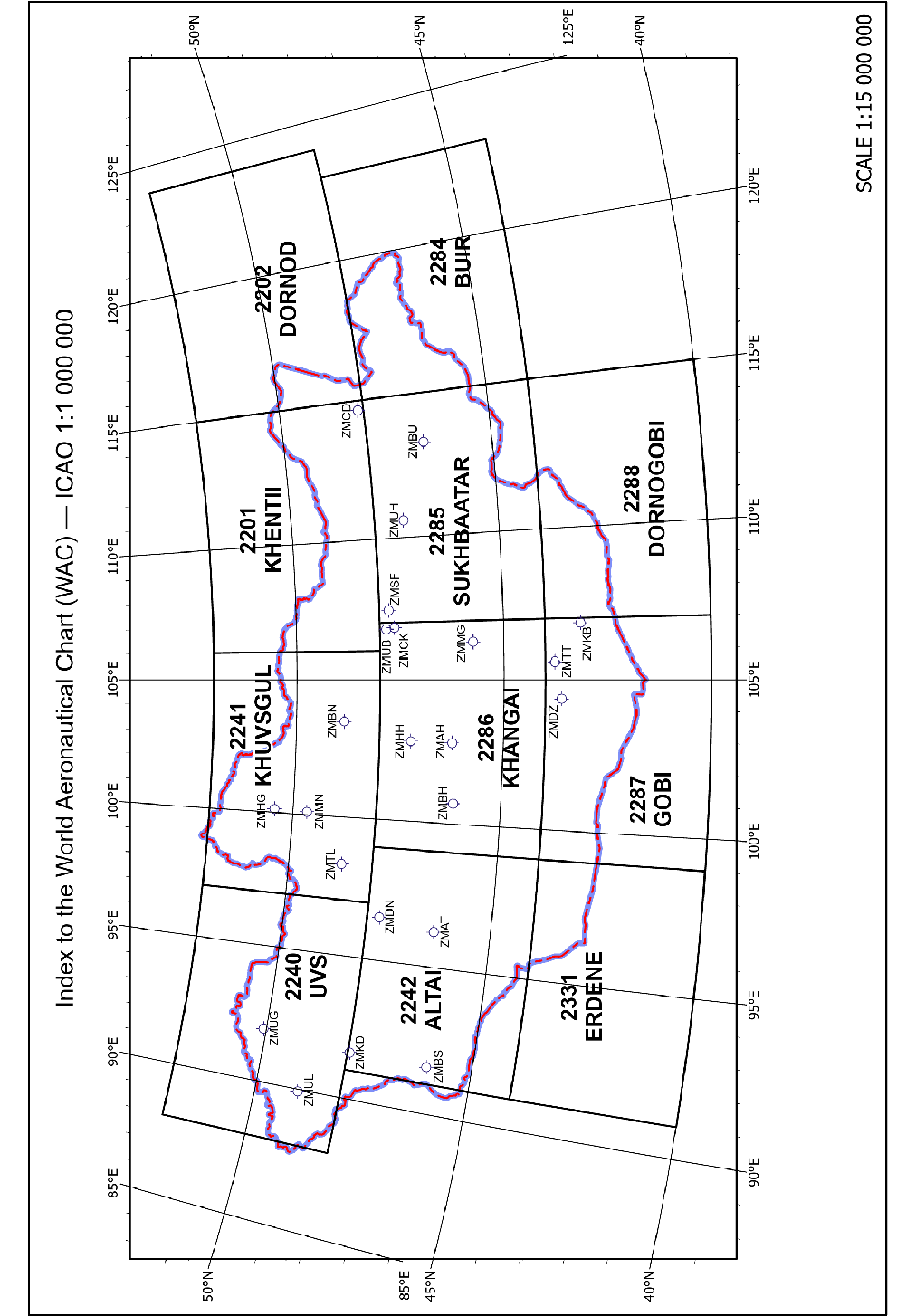

6.  Index to the World Aeronautical Chart (WAC) - ICAO 1:1000000

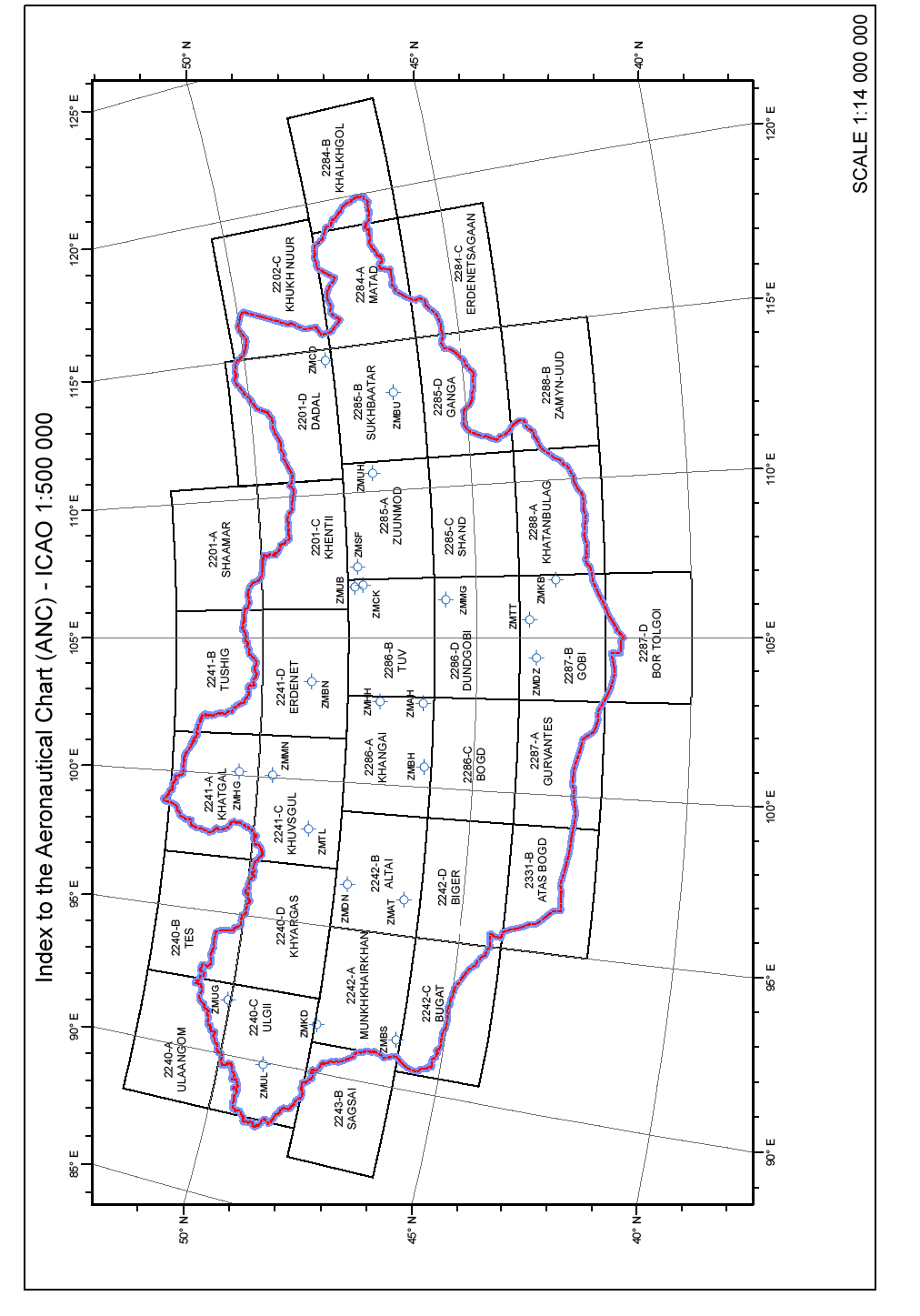

6.1  Index to the Aeronautical Chart (ANC) - ICAO 1:500000


7.  Topographical charts

A wide range of topographical charts is available from:

State administrative regulatory body of geodesy and cartography
Governmental building-XII, Barilgachdiin talbai, Chingeltei district,
Ulaanbaatar 15170,
Mongolia

Tel: 976-18000101

Fax: 976-51-260203

E-mail: info@gazar.gov.mn

URL: www.gazar.gov.mn

8.  Corrections to charts not contained in the AIP

NIL
